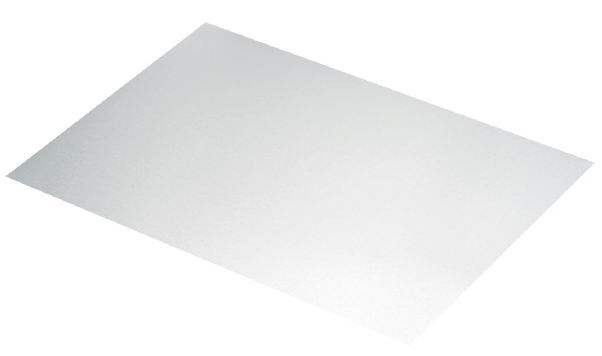

潤滑鋁片Lubricate Aluminum Entry Board
PCB鉆孔材料專家 PCB Drill Materials Specialist
產品用途:
?要用于BGA和高精準鉆孔
Application:
? Use for BGA and high precision drilling
產品特性:
?非凡的鉆孔精度
?有效的熱傳導
?減少鉆孔的磨損
?提咼孔的質量
?增加疊板層數,提高生產效率
Special Features:
?Extraordinary drilling accuracy
?Effective heating transfer
?Reduce the abrasion of drill bit
?Improve hole quality
?Increasing production efficiency by lacking more layers pcb
技術參數(Technical Data):
型號 Type | 厚度 Thickness (mm) | 厚度公差 Thickness Tolerance (mm) | 規格 Size (inch) | 尺寸公差 Size Tolerance (mm) | 備注 Remarks |
DXE-10-04D | 0.14 | ±10% | 37"x49" | ±3 | 可裁切定制尺寸 (cut forspecific size) |
DXE-07-03S | 0.10 | 41"x49" | |||
DXE-15-03E | 0.18 | 43"x49" |
備注:DXE-10-04D——鋁片0.10mm厚,D型水溶性涂層40μm厚
DXE-07-03S——鋁片0.07mm厚,S型親水性涂層30μm厚
DXE-15-03E——鋁片0.07mm厚,E型油性涂層30μm厚
DXE-10-04D is for 0.10mm aluminum sheet,40μm of D type Water-soluble Lubricate coating
DXE-07-03S is for 0.07mm aluminum sheet,30μm of S type Hydrophilic Lubricate coating
DXE-15-03E is for 0.15mm aluminum sheet,30μm of E type Oil Lubricate coating
