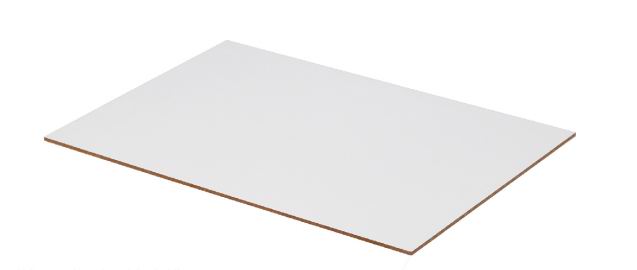

密胺墊板(白墊板) Melamine Pad White Pad
PCB鉆孔材料專家
產品用途:
?適用于高檔高精密電路板的鉆孔。
Application:
?Suitable for use in high-class and fprecision PCB drilling
產品特性:
?質量穩定,性價比高;
?獨特的添加劑對鉆頭具有降溫作用,能減少鉆頭磨損,有利于鉆頭排屑;
?特殊的結構能有效的減少毛刺,可省略或減少處理毛刺的工序;
?厚度均勻性極好,提高鉆孔孔壁質量;
?白色表面有利于鉆孔質量缺陷的監測;
?采用環保材料工藝,健康無污染;
?獨特的自適應工藝,可改善背鉆板、厚板、厚銅板鉆孔品質;
?可直接替代貼紙過油板和UV板等傳統白色墊板
Special Features:
?Stable high quality, outstanding price/ quality ratio;
?Unique adding to lower drill temperature .minimizing drill wear and removal chips easy
?Special structure significantly reduce drill burr. Deburring can bereduced or eliminated
?Excellent thickness tolerance improve hole quality
? White surface helps visual drill check
? Use environmental friendly material and technology to keep health and no pollution
? Unique auto adaptive technology can improve drilling quality in Back-drillingBoard, Thick Board and Heavy Copper Board
?Replace conventional Paper Laminated White Board and UV White Board
技術參數(Technical Data):
型號 | 厚度 Thickness (mm) | 厚度公差 Thickness Tolerance (mm) | 表面硬度 Surface Hardness (Shore-D) | 密度 Density (Kg/m3) | 規格 Size (inch) | 尺寸公差 Size Tolerance (mm) | 翹曲度 Warpage |
DXE-25-HMW | 2.5 | ±0.15 | 75± 5 | 880±15 | 37"x49" | ≤ 0.6% 的對角線 | |
DXE-20-HMW | 2.1 | 75± 5 | 880±15 | 41"x49" | ± 3 | ||
DXE-15-HMW | 1.6 | 75± 5 | 880±15 | ||||
DXE-25-UMW | 2.6 | 80± 5 | 960±15 | 43"x49" |
?HMW-高密度密胺墊板;UMW-超高密度密胺墊板
?外觀:表面呈白色,平整、光滑,無坑包等缺陷,允許有不規則色差。
?可裁切訂制其它尺寸
?HMW is for high density melamine backup board
UMW is for ultra high density melamine backup board
?Appearance: White, flatten and smooth surface without defects of pits and bulges.
Allow some colour difference at surface
?Can cut for specific size
