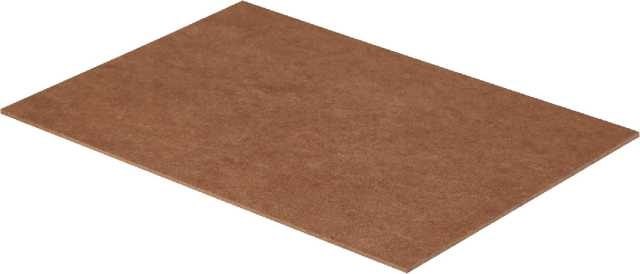

環保墊板Environment—friendly Backup Board
PCB鉆孔材料專家 PCB Drill Materials Specialist
產品用途:
?適用于小孔徑精密線路板鉆孔
Application:
? Suitable for small holes of precise PCB board
產品特性:
?多顏色選擇,適合不同的鉆孔需求
?樹脂造面,平滑、光潔,利于減少鉆孔披鋒
?低成本、高性能,可替代UV板、超高密墊板和貼紙板
?減少鈷頭磨損,降低鉆孔成本
?降低孔壁粗糙度
?環保,無污染
Special Features:
? Multi color for different selection and drilling application
? Resin surface is flatten and smooth, good for reduction of burrs
?Low price, high performance. Can replace UV board, super high density board and
paper laminated board
?Reduce drill wear and lower drilling cost
?Excellent hole wall quality
?Environment friendly and no pollution
技術參數(Technical Data):
型號 Type | 厚度 Thickness (mm) | 厚度公差 Thickness T olerance (mm) | 表面硬度 Surface Hardness (Shore-D) | 密度 Density (Kg/m3) | 規格 Size (inch) | 尺寸公差 Size Tolerance (mm) | 外觀 Apperance | 翹曲度 Warpage |
DXE-25-HPE | 2.5 | ±0.15 | 75±5 | 880±15 | 37"x49" 41"x49" 43"x49" | ±3 | 咖啡色、綠色、 灰色 (允許不規則色差) Brown、Green and Grey(Allow some colour difference) | ≤0.6% 的對角線 Of diagonal |
DXE-20-HPE | 2.1 | 75±5 | 880±15 | |||||
DXE-15-HPE | 1.6 | 75±5 | 880±15 | |||||
DXE-25-UPE | 2.6 | 80±5 | 960±15 |
備注:HPF一高密度環保墊板;UPF-非常高密度環保墊板
HPF is for high density environment-friendly backup board UPF is for ultra high density environment-friendly backup board
