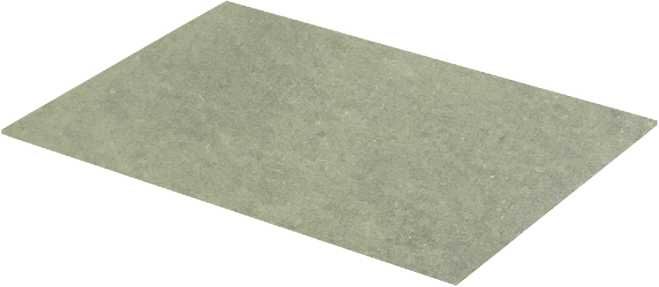

超高密墊板Ultra high packing plate
PCB鉆孔材料專家 PCB Drill Materials Specialist
產品用途:
?適用于高檔高精密電路板的鉆孔。
Application:
? Suitable for use in high-class and precision PCB drilling
產品特性:
?質量穩定,性價比高;
?無醛板選用100%優質原木材料制造,采用無醛生態粘合劑合成的板材;
?在研發、設計、生產、制作等環節層層把關,具有較強的穩定性、耐熱性、防潮性等性能;
?原材料和生產過程、完成產品都是無醋無污染。
Special Features:
? Stable quality, high performance-price ratio;
? The aldehyde-free board is made of 100% high-quality raw wood and is made of formaldehyde-free eco-adhesive;
? In R & D, design, production, production and other links layer upon layer, with strong stability, heat resistance,
? moisture resistance and other properties;
? Raw materials and production process, the final product are non-vinegar pollution.
技術參數(Technical Data):
型號 Type | 厚度 Thickness (mm) | 厚度公差 Thickness T olerance (mm) | 表面硬度 Surface Hardness (Shore-D) | 密度 Density (Kg/rrP) | 規格 Size (inch) | 尺寸公差 Size Tolerance (mm) | 外觀 Apperance | 翹曲度 Warpage |
DXE-25-UDE | 2.5 | ±0.15 | 80±5 | 960±15 | 37"x49" 41"x49" 43"x49" | ±3 | 表面呈本色 (允許不規 則色差) Original color (Allow some colour difference) | ≤0.6% 的對角線 Of diagonal |
DXE-25-HDE | 2.5 | 80±5 | 960±15 | |||||
DXE-25-MDF | 2.5 | 80±5 | 960±15 | |||||
DXE-20-HDF | 2.0 | 80±5 | 960±15 | |||||
DXE-20-MDF | 2.0 | 80±5 | 960±15 |
